HBL27W76 HWD

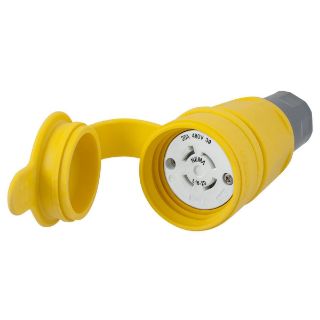

Wiring Device-Kellems Twist-Lock® Elastogrip® HBL27W76 3-Phase Isolated Grounding Standard Sized Water/Dust-Tight Cord Mount Watertight Female Connector, 480 Delta VAC, 20 A, 3 Poles, 4 Wires, Yellow
Manufacturer part number: HBL27W76
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
7 2 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$86.08

Product Details

Brand Name

Wiring Device-Kellems

Type

3-Phase Isolated Grounding Standard Sized Water/Dust-Tight Cord Mount Watertight

Alternate Supplier #

Grainger - 39AW44

Description

Wiring Device-Kellems Twist-Lock® Elastogrip® Female Connector, 3-Phase Isolated Grounding Standard Sized Water/Dust-Tight Cord Mount Watertight, 480 Delta VAC, 20 A, 3 Pole, 4 Wires, L16-20R/WD1/WD6 NEMA Rating, Commercial/Industrial Grade, NEMA 4/4X/6/6P/12/IP65/IP66/IP67 Enclosure, 3/8 to 7/8 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Elastomer/Composite, Yellow, 2.51 x 2.51 x 5.69 in

Standards

RoHS Compliant | UL 498 | CSA C22.2 No. 42 | ANSI Approved

Features

  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion resistant connection points

Specifications

Amperage Rating:20 A
Color:Yellow
Cord Diameter:3/8 to 7/8 in
Country of Origin:CN
Dimensions:2.51 in Dia x 5.69 in L
Enclosure:NEMA 4/4X/6/6P/12
Grade:Commercial/Industrial
Horsepower:5 hp
Material:Elastomer/Composite
NEMA Rating:L16-20R/WD1/WD6
Number of Poles:3
Number of Wires:4
Temperature Rating:-40 to 60 deg C
Terminal Type:Screw
Voltage Rating:480 Delta VAC
