HBL27W76BK HWD

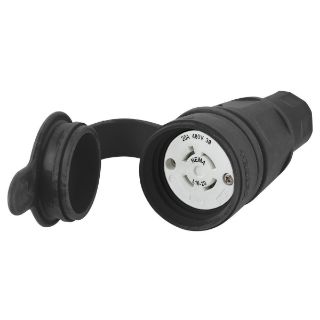

Picture of HBL27W76BK HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL27W76BK
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$94.77 / EA

Description

Brand Name

Wiring Device-Kellems

Type

Female Grounding Standard Surface Mount Watertight

Alternate Supplier #

Grainger - 39AW45

Description

Wiring Device-Kellems, HBL27W76BK, Locking Connector, Female Grounding Standard Surface Mount Watertight, 480 VAC, 20 A, 5 hp, 3 Pole, 4 Wires, L16-20R NEMA Rating, Industrial Grade, NEMA 4/4X/6/6P/IP65/IP66/IP67 Enclosure, 3/8 to 7/8 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Thermoplastic/Elastomer, Black, 2.51 x 2.51 x 5.69 in Dimensions

Application

Power Connection Applications

Standards

RoHS Compliant | ANSI Specified | UL Listed | NEMA WD1/WD6 | UL 498 | CSA C22.2 File No. 42 | NEMA WD-1/WD-6 | NSF Certified | UL 94-V-2 Flammability Rating

Features

  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
  • Watertight

Specifications

Amperage Rating:20 A
Color:Black
Cord Diameter:3/8 to 7/8 in
Country of Origin:PR
Dimensions:2.51 x 2.51 x 5.69 in
Enclosure:NEMA 4/4X/6/6P/IP65/IP66/IP67
Grade:Industrial
Horsepower:5 hp
Material:Thermoplastic/Elastomer
NEMA Rating:L16-20R
Number of Poles:3
Number of Wires:4
Temperature Rating:-40 to 60 deg C
Terminal Type:Screw
Voltage Rating:480 VAC
