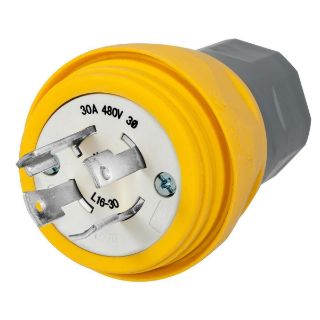

Picture of HBL28W76 HWD
Actual Product May Vary From Image

HBL28W76 HWD

Wiring Device-Kellems Twist-Lock® Elastogrip® HBL28W76 3-Phase Dust-Tight Grounding Male Watertight Locking Plug, 480 Delta VAC, 30 A, 3 Poles, 4 Wires, Yellow
Manufacturer: Hubbell Wiring Device-Kellems
Manufacturer part number: HBL28W76
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
4 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$80.03

Product Details

Brand Name

Wiring Device-Kellems

Type

3-Phase Grounding Male Watertight

Alternate Supplier #

Grainger - 39AW51

Description

Wiring Device-Kellems Twist-Lock® Elastogrip® Locking Plug, 3-Phase Dust-Tight Grounding Male Watertight, 480 Delta VAC, 30 A, 3 Poles, 4 Wires, NEMA L16-30P, NEMA 3R/3RX/4/4X/6/6P/12/IP66 Enclosure, 3/8 to 1 in Cord Dia, -40 to 60 deg C, Screw Terminal, TPE, Yellow, 2.77 in L x 2.77 in W x 3.94 in H

Standards

RoHS Compliant | UL 498 | CSA C22.2 No. 42 | ANSI Specified | NEMA WD1 | WD6

Features

  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion resistant connection points
  • The triple bypass seal provides a watertight UL type 4X seal where devices are mated
  • The cone seal at the cable entrance provides protection from water ingress
  • Strongest strain relief for any watertight device on the market, utilizing the patented GOTCHA™ ring and collapsible bushing combination
  • Nickel plated brass contacts and stainless steel screws provide corrosion resistance for metallic components
  • Impact resistant, smooth, thermoplastic elastomer body helps collection point and aids in easy debris removal
  • Floating cap rings allows for easy removal of dirt and debris

Specifications

Amperage Rating:30 A
Color:Yellow
Cord Diameter:3/8 to 1 in
Country of Origin:CN
Dimensions:2.77 in L x 2.77 in W x 3.94 in H
Enclosure:NEMA 3R/3RX/4/4X/6/6P/12/IP66
Grade:Commercial/Industrial
Horsepower:10 hp
Material:Elastomer/Composite
NEMA Rating:L16-30P
Number of Poles:3
Number of Wires:4
Temperature Rating:-40 to 60 deg C
Terminal Type:Screw
Voltage Rating:480 VAC
