HBL28W82 HWD

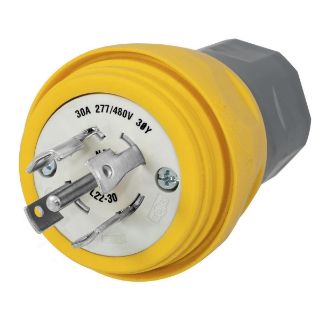

Picture of HBL28W82 HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL28W82
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$105.00 / EA

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Grounding Male Portable Standard Watertight Cord Mount

Alternate Supplier #

Grainger - 39AX12

Description

Wiring Device-Kellems, HBL28W82, Locking Plug, 3-Phase Grounding Male Portable Standard Watertight Cord Mount, 277/480 VAC, 30 A, 4 Pole, 5 Wires, L22-30P NEMA Rating, Commercial/Industrial Grade, NEMA 4/4X/6P/IP65/IP66/IP67 Enclosure, 3/8 to 1 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Elastomer/Composite, Yellow, 2.77 x 2.77 x 3.94 in Dimensions

Standards

RoHS Compliant | ANSI Specified | UL 498 | CSA C22.2 File No. 42 | NEMA WD1/WD6 | NSF Certified | UL94 V-2 Flammability Rating

Features

  • Strongest strain relief for any watertight device on the market, utilizing the patented GOTCHA™ ring and collapsible bushing combination
  • Nickel plated brass contacts and stainless steel screws provide corrosion resistance for metallic components
  • Impact resistant, smooth, thermoplastic elastomer body helps collection point and aids in easy debris removal
  • Floating cap rings allows for easy removal of dirt and debris
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
  • Water and dusttight housing
  • Smooth body design minimizes collection points simplifying the wash down process
  • The triple bypass seal provides a watertight UL type 4X seal where devices are mated
  • The cone seal at the cable entrance provides protection from water ingress

Specifications

Amperage Rating:30 A
Color:Yellow
Cord Diameter:3/8 to 1 in
Country of Origin:PR
Dimensions:2.77 x 2.77 x 3.94 in
Enclosure:NEMA 4/4X/6P/IP65/IP66/IP67
Grade:Commercial/Industrial
Material:Elastomer/Composite
NEMA Rating:L22-30P
Number of Poles:4
Number of Wires:5
Temperature Rating:-40 to 60 deg C
Terminal Type:Screw
Voltage Rating:277/480 VAC
