HBL3011EGY HWD

Name: HBL3011EGY HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL3011EGY HWD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL3011EGY

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Standard

Description

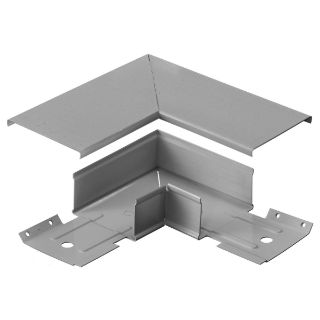

Wiring Device-Kellems, HBL3011EGY, Raceway Elbow, Standard, Series: HBL3000, 90 deg Bend, Flat End, 3.7 sq-in Size, Surface Mounting, For Use With: HBL3000 Series Metal Raceway, Rolled Steel, Gray, Painted, 6.4 in L x 6.3 in W x 1.7 in H Dimensions

Application

Non-Hazardous Locations

Standards

RoHS Compliant | UL 5 | CSA Certified

Features

For right angle turns on same surface
Without knockouts
Wide range of covers and cover plates accommodate the most demanding applications
Removable cover and cover plates provide easy access to wiring compartment
Pre-cut covers and plates provide quick installation
Transition fitting UL classified to transition from Wiremold® 3000 series metal raceway to Hubbell® HBL3000 series metal raceway
Reducer fitting provides transition from Hubbell® HBL3000 series to Hubbell® HBL2000 series raceway
Hubbell® Handi-Screw® eliminates difficult to install long screws for faster mounting
Round corner boxes eliminate sharp edges
Boxes have a 1-seam construction providing a clean look
Large capacity boxes allows for the installation of 30, 50 or 60 A receptacles
Utility box can be used as a tee, cross, junction box or as a branch circuit extension
Flat elbow is used for right angle turns on the same surface
3.7 sq-in nominal cross section

Specifications

Bend Angle:	90 deg
Color:	Gray
Dimensions:	6.4 in L x 6.3 in W x 1.7 in H
End Type:	Flat
Finish:	Painted
Material:	Rolled Steel
Mounting Type:	Surface
Series:	HBL3000
Size:	3.7 sq-in
Suitable For Use With:	HBL3000 Series Metal Raceway
