HBL3100R6W HWD

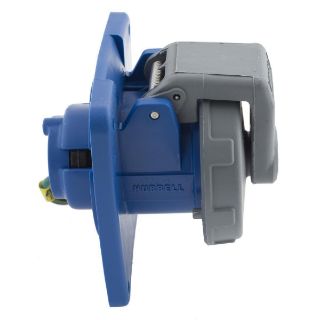

Picture of HBL3100R6W HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL3100R6W
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$609.26 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Grounding Single Flanged Standard Screw Mount Watertight

Alternate Supplier #

Grainger - 5Z922

Description

The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy duty, external cord grip provides superior strain relief on the conductors. Hubbell® horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognizes as an approved disconnecting/line of sight disconnecting means.
Wiring Device-Kellems HBL® Pin and Sleeve Receptacle, 1-Phase Grounding Single Flanged Standard Screw Mount Watertight, 250 VAC, 100 A, 2 Pole, 3 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Blue, 5-1/2 in L x 5-1/2 in W

Application

High Ampacity Watertight Connection Applications

Standards

RoHS Compliant | CSA C22.2 No. 182.1 | IEC 309-1/309-2 | UL 498 | UL 1682 | UL File No. E146032

Features

  • Corrosion resistant self-closing gasketed cover
  • Sequential contact engagement to prevent a momentary over voltage on components
  • Super tough insulated non-metallic house for impact and chemical resistance
  • Color coded housings for easy identification
  • Multi-contact spring provides and maintains high unit pressure on mating pins to minimize temperature rise
  • High impact thermoset contact carrier and retainer
  • Withstands 3000 VAC minimum dielectric voltage
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Zytel® 101 nylon housing and mounting flange, reinforced thermoplastic polyester cover, solid neoprene gaskets, nickel plated brass cover screw
  • 3 to 1/0 AWG wire

Specifications

Amperage Rating:100 A
Color:Blue
Country of Origin:PR
Dimensions:5-1/2 in H x 5-1/2 in W
Enclosure:IP67
Grade:Industrial
Material:Composite/Thermoplastic
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Pressure Screw
Voltage Rating:250 VAC
