HBL330P6W HWD

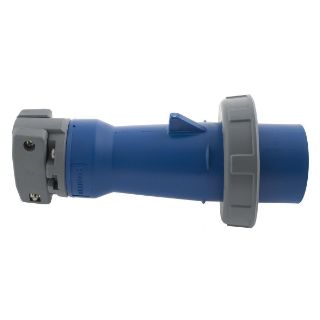

Picture of HBL330P6W HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL330P6W
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$365.56 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Grounding Heavy Duty Male Standard Watertight

Description

Wiring Device-Kellems Circuit-Lock® Pin and Sleeve Plug, 1-Phase Grounding Heavy Duty Male Standard Watertight, 250 VAC, 30 A, 2 Poles, 3 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Blue, 3.74 in Dia x 8.05 in L

Application

High Ampacity Connection Applications

Standards

UL 498 | UL 1682 | UL 1686C2 File No. E146033 | IEC 309-1/309-2 | CSA File No. LR280C | RoHS Compliant

Features

  • Nickel plated brass clamp nut
  • Rynite SST35 lock ring, cord clamps, gland cap
  • High impact thermoset contact carrier and retainer
  • Stainless steel terminal screws, assembly screws, cord clamp screws
  • All portable cord
  • 12 to 8 AWG wire size
  • Cord mounted
  • Non-NEMA rating

Specifications

Amperage Rating:30 A
Color:Blue
Country of Origin:PR
Dimensions:3.74 in Dia x 8.05 in L
Enclosure:IP67
Grade:Industrial
Material:Composite
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Pressure Screw
Voltage Rating:250 VAC
