HBL332B6W HWD

Hubbell® pin and sleeve products are designed and manufactured to meet the International Standard IEC 60309-1 and IEC 60309-2. This device standard calls out a singly rated, non-interchangeable configuration for every voltage and type of service throughout the world. Pin and sleeve device housings are color coded by voltage rating. The voltage is determined by the location of the female ground contact relative to the housing keyway. Simply by manufacturing the device with a ground contact in a certain clock position, the device will be rated for a particular voltage system. The diagram shows the keying position and the color coding that is associated with each voltage.

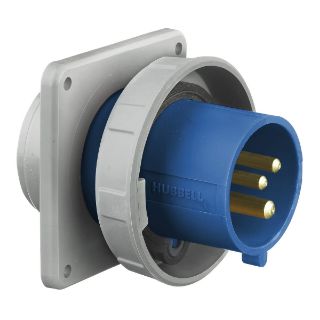

Wiring Device-Kellems Pin and Sleeve Inlet, 1-Phase Flanged Heavy Duty Male Standard Watertight, 220 to 240 VAC, 32 A, 2 Pole, 3 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite/Nylon, Blue, 3-3/4 in H x 3-3/4 in W Dimensions
