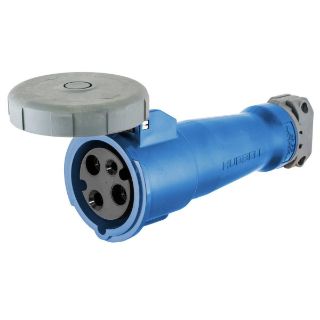

HBL332C6W HWD

Product Details

Manufacturer part number:
HBL332C6W
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Female Heavy Duty Insulated Standard Watertight

Description

The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy duty, external cord grip provides superior strain relief on the conductors. Hubbell® horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting/line of sight disconnecting means.
Wiring Device-Kellems Pin and Sleeve Connector, Female Grounding Heavy Duty Insulated Standard Watertight, 220 to 240 VAC, 32 A, 2 Poles, 3 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite/Nylon, Blue, 4.27 in Dia x 8.96 in L

Application

High Ampacity Connection Applications

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | UL 498 | UL File No. E146033 | IEC 309-1 | 309-2 | CSA File No. LR280C

Features

  • Self-closing gasketed cover
  • Super tough insulated non-metallic housing
  • Watertight neoprene glad seal to prevent water ingress from entering at cable entrance
  • Sequential contact engagement to prevent a momentary over voltage
  • Multi-contact spring provides and maintains high unit pressure on mating pins to minimize temperature rise

Specifications

Amperage Rating:32 A
Color:Blue
Country of Origin:US
Dimensions:2.49 in L x 3.75 in H
Enclosure:IP67
Grade:Industrial
Material:Composite
NEMA Rating:NEMA 4X
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Pressure Screw
Voltage Rating:220 to 240 VAC
