HBL3762C HWD

Name: HBL3762C HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL3762C HWD
Price: 229.65 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL3762C

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$229.65 / EA

Description

Brand Name

Wiring Device-Kellems

Type

Female Heavy Duty Non-Grounding Insulated Standard

Alternate Supplier #

Grainger - 3D123

Description

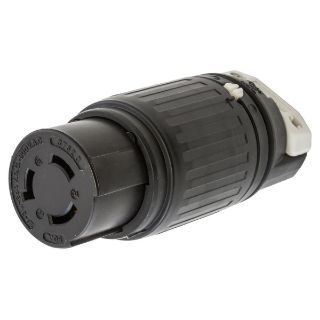

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Connector, Female Heavy Duty Non-Grounding Insulated Standard, 600 VAC/250 VDC, 50 A, 3 Pole, 4 Wires, Industrial Grade, 0.83 to 1.25 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 2.56 in L x 2.56 in W x 6.5 in H Dimensions

Application

Indoor Applications

Standards

UL 498 | CSA C22.2 No. 42

Features

Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
Heavy duty 2-piece external cord clamp provides maximum strain relief
Thermoplastic polyester interior provides heat resistance and impact strength
Oversized contacts minimize operating temperature
6 AWG conductor
Indoor dry unless protected by additional mean environmental conditions
Cord mounted
Non-NEMA rating

Specifications

Amperage Rating:	50 A
Color:	Black/White
Cord Diameter:	0.83 to 1.25 in
Country of Origin:	PR
Dimensions:	2.56 in L x 2.56 in W x 6.5 in H
Enclosure:	IP20
Grade:	Industrial
Material:	Composite
Number of Poles:	2
Number of Wires:	4
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Pressure Screw
Voltage Rating:	600 VAC/250 VDC
