HBL3763C HWD

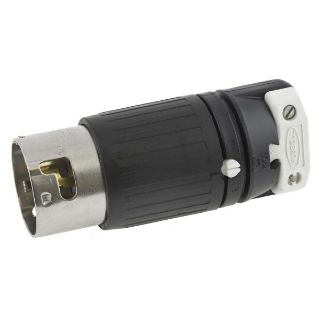

Picture of HBL3763C HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL3763C
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$189.03 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Extra Heavy Duty Grounding Standard Cord Mount

Alternate Supplier #

Grainger - 3D124

Description

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Plug, 1-Phase Extra Heavy Duty Grounding Standard Cord Mount, 600 VAC/250 VDC, 50 A, 2 Pole, 3 Wires, Industrial Grade, IP20 Enclosure, 0.83 to 1.25 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black/White, 2.56 x 2.56 x 6.37 in

Application

Dry Locations and Indoor Applications

Standards

RoHS Compliant | UL 498 | CSA C22.2 No. 42

Features

  • Glass reinforced PET blade holder, terminal retainer, cord clamp
  • Stainless steel terminal/ground screw
  • Brass blade
  • 302/304 stainless steel cord clamp screw, body holding screw
  • Molded in or stamped on ratings
  • 2000 VAC minimum dielectric withstand voltage
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL 498 temperature rise
  • Safety shroud stainless steel
  • Neoprene seal
  • Nylon seal cup
  • Supertough® nylon latch
  • Copper box terminal
  • Supertough® nylon front & rear housing
  • Supertough® nylon housing offers better impact qualities
  • Stainless steel shroud protects contacts and prevents mismating
  • Heavy duty 2-piece external cord clamp provides maximum strain relief
  • Box terminal with hex soaring threaded slug, permits high clamping pressure on conductors without damaging strands
  • Thermoplastic polyester interior provides heat resistance and impact strength
  • Non-NEMA rating

Specifications

Amperage Rating:50 A
Color:Black/White
Cord Diameter:0.83 to 1.25 in
Country of Origin:PR
Dimensions:2.56 x 2.56 x 6.37 in
Enclosure:IP20
Grade:Industrial
Material:Composite
Number of Poles:2
Number of Wires:3
Series:HBL®
Temperature Rating:-40 to 75 deg C
Terminal Type:Pressure Screw
Voltage Rating:600 VAC/240 VDC
