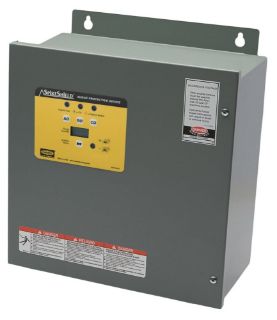

HBL3P120B HWD

Name: HBL3P120B HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL3P120B HWD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL3P120B

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Type 2 SPD

Description

Wiring Device-Kellems SpikeShield® Service/Branch Panel Protection, Type 2 SPD, 120/240 VAC Electrical Rating, 50/60 Hz Frequency, 1 ph, 12 to 2 AWG Wire, 200 kA Short Circuit, 120 kA Peak Surge Current, Modes of Protection: L-N/L-G/N-G/L-L, 5 ns Response, Red and Green LED/Diagnostic Test Switches/Dry Contacts/Audible Alarm/Surge Counter Indicator, Environmental Conditions: -40 to 149 deg F, NEMA 3R/12 Enclosure, Wall Mounting, 16 in L x 14 in W x 7 in D Dimensions, Steel

Application

Commercial, Hospitality, Computer Labs, Healthcare, Data Centers, Schools and Universities

Standards

CSA C22.2 File #8-M1986 | cULus Listed | UL 1449-3rd Edition Type 2 SPD/UL 1283

Features

Economical, compact, modular design
Protect branch panels, safety switches and load centers
Appendage or flush mounted to a finished wall next to the panel
Surge counter included in all units

Specifications

Country of Origin:	US
Dimensions:	16 in L x 14 in W x 7 in D
Electrical Ratings:	120/240 VAC
Enclosure Type:	NEMA 3R/12
Environmental Conditions:	-40 to 149 deg F
Frequency Rating:	50/60 Hz
Indicator Type:	Red and Green LED/Diagnostic Test Switches/Dry Contacts/Audible Alarm/Surge Counter
Material:	Steel
Modes of Protection:	L-N/L-G/N-G/L-L
Mounting Type:	Wall
Peak Surge Current:	120 kA
Phase:	1 ph
Response Time:	5 ns
Short Circuit Current Rating:	200 kA
Wire Size:	12 to 2 AWG
