HBL400FBK HWD

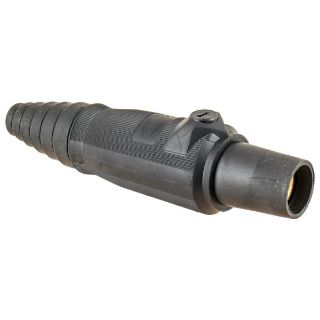

Picture of HBL400FBK HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL400FBK
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$51.09 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Pole Female Heavy Duty Taper Nose Standard SC/PPC Type

Description

The name Hubbell® wiring Device-Kellems is synonymous with innovation and quality. In keeping with this reputation, Hubbell® wiring Device-Kellems has once again raised the bar by introducing a redesigned line of innovative, high quality, single pole plugs, receptacles and all the accessories for the single pole connector marketplace. The redesigned Hubbell® single pole connector line is rated for 600 VAC and 250 VDC, up to 400 A for cable sizes #4 through 4/0. These single pole connectors are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. These single pole connectors have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength nonconductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
Wiring Device-Kellems, HBL400FBK, Plug, 1-Pole Female Heavy Duty Taper Nose Standard SC/PPC Type, Series: 16 Series, 600 VAC/250 VDC, 400 A, 2/0 to 4/0 AWG Wire, Pressure Screw Terminal Connection, Brass Contact, Composite Housing Material, 3R/4X/12K NEMA Rating, Cable Mounting, Specifications: 1-Pole, 1 ph, 1-Wire, 240000 W, 90 deg C, Black, 1.06 in Dia x 6.84 in L Dimensions

Application

Theatre, Stage and Studio, Attachment Plugs and Receptacles and High Ampacity Connections Applications

Standards

RoHS Compliant | UL 1691 | UL 94 Flammability Rating | CSA C22.2 File No. 0.17 | UL 498/94 | cULus Listed

Features

  • Indoor dry unless protected by additional means
  • Insulgrip® style housing for superior gripping conforms to the user's hand making it easy to connect and disconnect, even with gloves on
  • Easily identifiable cable cut-off points for secure fit allows you to easily customize and cut the housing to the required/correct cable size
  • Rounded corners reduce the possibility of catching or snagging on structures or equipment
  • Non-conductive retaining screw locks contacts in place and allows for easy installation, prevents contact movement within housing
  • Recessed mounting screw minimizes screwdriver slippage
  • Lock symbol aids in the mating of devices and provides a clear indication that the devices are properly connected
  • With lock indicator symbol making mating clear and simple, devices can lock 180 deg to prevent unintended disconnects
  • Provides high contact pressure and vibration resistant connection, which helps reduce operating temperatures and extends product life
  • High conductivity brass contact provides improved performance by helping to reduce operating temperatures and extends life
  • Special screw thread requires fewer turns than most competitors and reduces the risk of a conductive screw being substituted
  • Extra long non-conductive inner sleeve reduces force required to install housing over contacts, easier to rotate contact in body for installing retaining screw
  • Engineered body design makes installation simple with no need for additional tools and the non-metallic retaining screw helps to make operation safe for all involved
  • Strip gauge molded into every plug and receptacle housing, simplifies installation and saves time
  • Accommodates wide range of cables
  • Extra long locking ring
  • UL 498 for attachment plugs and receptacles
  • UL 1691 draft standard for single pin and sleeve devices intended for theatre, stage and studio applications
  • Industrial grade
  • Single conductor, double set screws

Specifications

Amperage Rating:400 A
Color:Black
Connection Type:Pressure Screw Terminal
Contact Material:Brass
Country of Origin:CN
Dimensions:1.06 in Dia x 6.84 in L
Housing Material:Composite
Mounting Type:Cable
NEMA Rating:3R/4X/12K
Series:16 Series
Specifications:1-Pole, 1 ph, 1-Wire, 240000 W
Temperature Rating:90 deg C
Voltage Rating:600 VAC/250 VDC
Wire Size:2/0 to 4/0 AWG
