HBL4100P6WP HWD

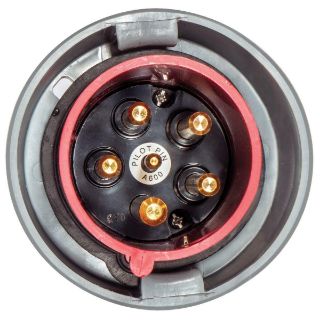

Picture of HBL4100P6WP HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL4100P6WP
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$792.04 / EA

Description

Brand Name

Wiring Device-Kellems

Type

Grounding Heavy Duty Male Multi-Phase Watertight

Description

Wiring Device-Kellems Pin and Sleeve Plug, Grounding Heavy Duty Male Multi-Phase Watertight, 380 to 415 VAC, 100/125 A, 3 Pole, 4 Wires, 3R/3RX/4X/12 NEMA Rating, Industrial Grade, IP68/IP69K Enclosure, -40 to 75 deg C, Screw Terminal, Thermoplastic, Red, 4.92 in Dia x 12.63 in L

Application

For high ampacity watertight connections

Standards

CSA C22.2 No.182.1 File No. LR280C | UL Classified to IEC 60309-1 | IEC 60309-2 | UL 1682 | UL File No. E146033 | UL V-0 Flammability Rating

Features

  • 1-piece non-metallic housing provides impact and chemical resistance in an insulated body
  • Watertight neoprene gland seal to prevent water ingress from entering at cable entrance
  • Solid 1-piece pins for reliable electrical contact
  • Sequential contact engagement to prevent a momentary over voltage
  • Thermoset polyester contact carrier

Specifications

Amperage Rating:100/125 A
Color:Red
Country of Origin:PR
Dimensions:4.92 in Dia x 12.63 in L
Enclosure:IP68/IP69K
Grade:Industrial
Material:Thermoplastic
NEMA Rating:3R/3RX/4X/12
Number of Poles:3
Number of Wires:4
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:380 to 415 VAC
