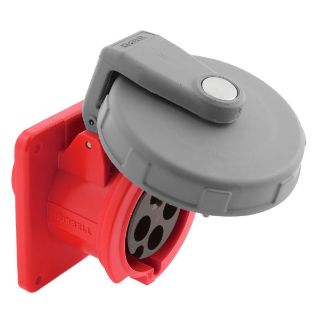

HBL4100R7W HWD

The IEC line of plugs and connectors are made with a rugged super tough, one piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy duty, external cord grip provides superior strain relief on the conductors. Hubbell® horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognizes as an approved disconnecting/line of sight disconnecting means.

Wiring Device-Kellems, HBL4100R7W, Pin and Sleeve Receptacle, 3-Phase Flanged Grounding Non-NEMA Single Standard Watertight Screw Mount, 480 VAC, 100 A, 30 hp, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Red, 5-1/2 in L x 5-1/2 in W Dimensions
