HBL420C7W HWD

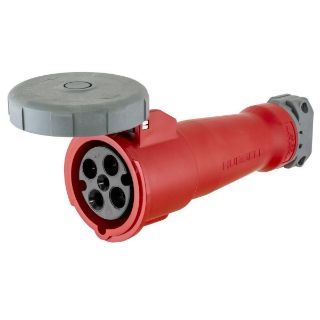

Picture of HBL420C7W HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL420C7W
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$295.26 / EA

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Female Heavy Duty Insulated Standard Watertight

Description

Wiring Device-Kellems Pin and Sleeve Connector, 3-Phase Female Heavy Duty Insulated Standard Watertight, 480 VAC, 20 A, 3 Poles, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Red, 3.66 in Dia x 7.9 in L

Application

For high ampacity connections

Standards

RoHS Compliant | UL 498 | UL File No. E146033 | IEC 309-1/309-2 | CSA File No. LR280C

Features

  • Self-closing gasketed cover
  • Supertough® insulated non-metallic housing
  • Watertight neoprene glad seal to prevent water ingress from entering at cable entrance
  • Sequential contact engagement to prevent a momentary over voltage
  • Multi contact spring provides and maintains high unit pressure on mating pins to minimize temperature rise
  • High impact thermoset retainer and contact carrier
  • Stainless steel (300 series) terminal and assembly screws
  • Rynite SST35 cord clamp
  • Solid neoprene grommet/glands
  • Withstands 3000 VAC minimum dielectric voltage
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL 498 temperature rise
  • Terminals identified in accordance with North American and IEC conventions terminal identification
  • Identification and ratings are a permanent part of the device housing
  • Watertight per IEC 60309-1 moisture resistance
  • 0.33 to 0.83 in cord clamp range
  • 14 to 10 AWG wire size
  • Cord mounted
  • Non-NEMA rating

Specifications

Amperage Rating:20 A
Color:Red
Country of Origin:US
Dimensions:3.66 in Dia x 7.9 in L
Enclosure:IP67
Grade:Industrial
Material:Composite
NEMA Rating:4X
Number of Poles:3
Number of Wires:4
Temperature Rating:-40 to 75 deg C
Terminal Type:Pressure Screw
Voltage Rating:480 VAC
