HBL420MI7W HWD

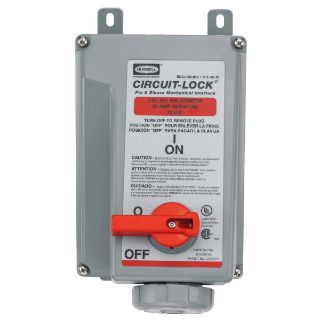

Wiring Device-Kellems Circuit-Lock® HBL420MI7W 3-Phase Female Grounding Heavy Duty Single Non-Fusible Standard Watertight Mechanically Interlocked Receptacle, 480 Delta VAC, 20 A, 3 Poles, 4 Wires
Manufacturer part number: HBL420MI7W
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
1 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,346.62

Product Details

Brand Name

Wiring Device-Kellems

Type

3-Phase Female Grounding Non-NEMA Standard UnFusible Watertight Pressure Screw Terminal

Description

Wiring Device-Kellems Circuit-Lock® Mechanically Interlocked Receptacle, 3-Phase Female Grounding Heavy Duty Single Non-Fusible Standard Watertight, 480 Delta VAC, 20 A, 9600 W, 3 Poles, 4 Wires, 1 in Hub, NEMA 4X/12/IP67 Enclosure, Threaded, Composite/Thermoplastic, Red, 8-3/4 in W x 7-3/4 in D

Application

For high ampacity watertight connection and industrial applications

Standards

CSA Certified | IEC 309-1/309-2 | UL 498

Features

  • Insulated non-metallic housing, super tough, non-conductive and chemical-resistant for heavy duty industrial environments
  • IEC pin and sleeve devices are color coded by voltage for easy identification
  • Self-closing gasketed cover, detents into position to fully close automatically
  • Lockable handle to meet OSHA lockout tagout regulations
  • 2-stage interlocking mechanism to help defeat tampering
  • Watertight conduit hub and grounding plate for use on metallic conduit
  • Color coded rating pad and receptacle mount to signify voltage
  • Large gears enclosed in a gear box assembled on one plane to eliminate possible gear jumping
  • Horsepower rated disconnect switch handles large motor loads
  • DIN rail mounted switch for easy installation and replacement
  • Replaceable spring loaded lift cover with neoprene gasket for a watertight seal
  • Reverse service has dependable solid brass pins for longer life and reliable electrical contact
  • Comes with brass inserts and stainless steel screws for higher torque and better sealing
  • Three molded-in conduit drill points are located on the top, bottom and back surface of enclosure
  • Adjustable mounting feet are ductile to allow mounting on irregular surfaces

Specifications

Amperage Rating:20 A
Color:Red
Country of Origin:US
Dimensions:8-3/4 in L x 7-3/4 in W x 11-1/2 in H
Enclosure:NEMA 4X/12/IP67
Hub Size:1 in
Material:Thermoplastic
Mounting:Threaded
Number of Poles:3
Number of Wires:4
Power Rating:10 hp
Voltage Rating:480 VAC
