HBL430B7W HWD

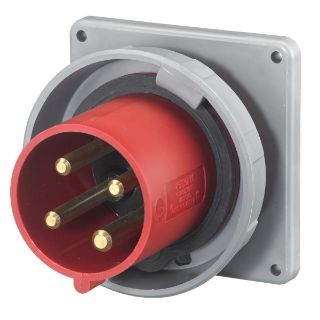

Picture of HBL430B7W HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL430B7W
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$403.05 / EA

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Flanged Grounding Male Non-NEMA Single Standard Watertight Screw Mount

Description

Hubbell® IEC 60309 pin and sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL® series of IEC pin and sleeve were designed for the demanding north american market. Hubbell® was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous of innovative features noted below.
Wiring Device-Kellems Pin and Sleeve Inlet, 3-Phase Flanged Grounding Male Non-NEMA Single Standard Watertight Screw Mount, 480 VAC, 30 A, 7.5 hp, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Red, 3-3/4 in W x 3-3/4 in H

Application

High Ampacity Watertight Connection Applications

Standards

RoHS Compliant | CSA File No. LR280C | IEC 309-1/309-2 | UL 498

Features

  • Solid one piece pins for reliable electrical contact
  • Supertough® insulated non-metallic housing
  • Raised collar surrounds each phase pin to prevent electrical tracking
  • Zytel® 101 nylon mounting flange
  • Stainless steel hinge spring, mounting screws, terminal screws and assembly screws
  • Neoprene gasket
  • 10000 mechanical cycles, 6000 electrical cycles endurance

Specifications

Amperage Rating:30 A
Color:Red
Country of Origin:PR
Dimensions:3-3/4 in W x 3-3/4 in H
Enclosure:IP67
Grade:Industrial
Horsepower:7.5 hp
Material:Composite/Nylon
Number of Poles:3
Number of Wires:4
Temperature Rating:-40 to 75 deg C
Terminal Type:Pressure Screw
Voltage Rating:480 VAC
