HBL430C7W HWD

PS, IEC, CONN, 3P4W, 30A 3P 480V,4X/69K
Manufacturer part number: HBL430C7W
Availability: 3 in stock
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
3 0 0
Loading...
$364.00 / EA

Product Details

Brand Name

WIRING DEVICE-KELLEMS

Type

Standard

Description

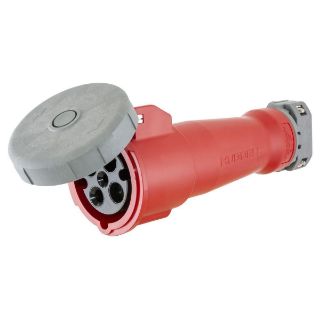

Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Female, Connector Body, 30A 3-Phase Delta480V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Red, Watertight

Application

High Ampacity Connections

Standards

UL 498, IEC 309-1 and 309-2

Features

Water-Tight

Specifications

Amperage Rating:30 North mericn A
Color:Red
Conductor Range:#12AWG to #8AWG
Connection:Pressure Screw Terminal
Country of Origin:US
Environmental Conditions:Water Tight
Insulation:Insulated Body
Material:Composite
Mounting:Cord Mounted
NEMA Rating:Non-NEMA
Number of Conductors:4-Wire Grounding
Number of Poles:3-Pole
Size:Standard
Sub Brand:Pin and Sleeve
Temperature Rating:Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Voltage Rating:3-Phase 480 V
