HBL45123GF20 HWD

Product Details

Manufacturer part number:
HBL45123GF20
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Heavy Duty

Description

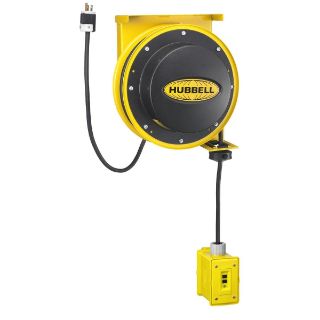

Hubbell® Industrial cord reels eliminate unmanaged cords and cables that can cause trip hazards and or risk of electric shock. They feature a plug-in 5 ft power cord that requires no electric wiring, a multi-position guide arm to position the cable where its needed and a positive latch mechanism to automatically maintain desired cord length. Available with a variety of connector types and lighted lamp ends, the cord reels can be easily wall, ceiling or bench mounted. An available pivot base provides a full 340 deg rotation.
Wiring Device-Kellems, HBL45123GF20, Cord Reel, Heavy Duty, 125 VAC, 20 A, 45 ft Cord Length, 12 to 3 AWG Conductor, Positive Latch Handle, Steel Reel, 12.38 in Reel Diameter, Bench/Ceiling/Wall Reel Mounting, NEMA 5-20R Receptacle, Plug-In, Industrial Grade, Black/Yellow, 13 in H x 9-3/4 in D Dimensions

Application

Dry, Indoor and Non-Hazardous Locations

Standards

cULus Listed | UL 355

Features

  • Durable, corrosion-resistant steel construction design with yellow or white powder coat finish
  • Multi-position guide arm
  • Positive latch mechanism automatically maintains desired cord length
  • 12 AWG SJEO cord for greater current carrying capacity
  • Plug-in 5 ft long power cord requires no electrical wiring
  • NEMA 5-20R configuration
  • Ground fault protected gray duplex receptacles
  • 5 ft inactive cable length
  • Optional base

Includes

(1) 125 VAC 20 A GFCI Gray Duplex Receptacle, Power Outlet Box, HBL5266C 20 A Straight Blade Plug, (1) GFM20 GFCI Module and (1) HBLP26FS Weatherproofing Cover

Specifications

Amperage Rating:20 A
Color:Black/Yellow
Conductor Size:12 to 3 AWG
Cord Color:Black
Cord Length:45 ft
Country of Origin:US
Dimensions:13 in H x 9-3/4 in D
Grade:Industrial
Handle Type:Positive Latch
Material:Steel
Plug Type:Plug-In
Receptacle Type:NEMA 5-20R
Reel Diameter:12.38 in
Reel Material:Steel
Reel Mounting Type:Bench/Ceiling/Wall
Voltage Rating:125 VAC
