HBL45315 HWD

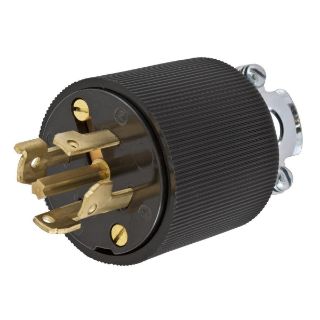

Picture of HBL45315 HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL45315
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$222.00 / EA

Description

Brand Name

Wiring Device-Kellems

Type

Heavy Duty Standard Sized

Alternate Supplier #

Grainger - 3D779

Description

Wiring Device-Kellems Twist-Lock® Variload® Locking Plug, Heavy Duty Standard Sized, 600 VAC/250 VDC, 30 A, 4 Pole, 5 Wires, Industrial Grade, IP20 Enclosure, 5/8 to 1 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 2.13 in Dia x 1.86 in L Dimensions

Application

Dry Locations and Indoor Applications

Standards

UL 498 | CSA C22.2 No. 42 | 0.6 | UL94-HB Flammability Rating

Features

  • Cold rolled steel nickel plated terminal clamp
  • Brass blade
  • Steel (green finish) ground screw
  • Steel zinc plated cord clamp/body holding screw
  • Molded-in or stamped-on ratings
  • 2000 VAC minimum dielectric withstand voltage
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • 10 AWG terminal accommodation
  • Heat resistant thermoset construction
  • Non-interchangeable center pin configuration to be designated to different circuits
  • Unique center pin
  • Cord mounted
  • Non-NEMA rating

Specifications

Amperage Rating:30 A
Color:Black
Cord Diameter:5/8 to 1 in
Country of Origin:PR
Dimensions:2.13 in Dia x 1.86 in L
Enclosure:IP20
Grade:Industrial
Material:Nylon
Number of Poles:4
Number of Wires:5
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:600 VAC/250 VDC
