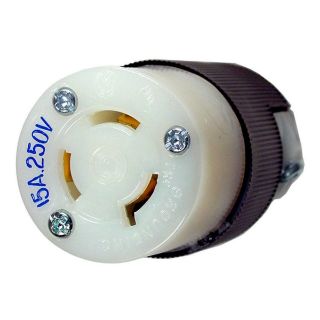

Picture of HBL4579C HWD
Actual Product May Vary From Image

HBL4579C HWD

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL4579C Female Heavy Duty Insulated Grounding Standard Locking Connector, 250 VAC, 15 A, 2 Poles, 3 Wires, Black/White
Manufacturer: Hubbell Wiring Device-Kellems
Manufacturer part number: HBL4579C
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
1 2 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$42.10

Product Details

Brand Name

Wiring Device-Kellems

Type

Female Heavy Duty Insulated Grounding Standard

Alternate Supplier #

Grainger - 6C579

Description

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Connector, Female Heavy Duty Insulated Grounding Standard, Series: HBL®, 250 VAC, 15 A, 2 hp, 2 Poles, 3 Wires, NEMA L6-15R, Industrial Grade, IP20 Enclosure, 0.23 to 0.72 in Cord Dia, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 1.53 in Dia x 2.78 in L

Standards

UL 498 | CSA C22.2 No. 42 | Federal Specification WC596 | NEMA WD1/WD5

Features

  • Ribbed nylon housing provides a secure grip that impact and chemical resistant
  • Superior cord grip design protects terminations from excess strain
  • Integral VARI-SIZE® insert accommodates a wide range of cord diameters
  • Clear polycarbonate terminal retainer
  • Natural white nylon cord clamp, body contact carrier
  • Steel nickel plated terminal clamp
  • Brass terminal screw, ground screw, contact spring, spring binding plate, ground contact
  • Steel zinc plated cord clamp screw, body holding screw
  • 15 A 14 AWG wire size
  • Withstands 2000 VAC minimum dielectric voltage
  • Cord mounted
  • Insulated body
  • 14 to 12 AWG wire size

Specifications

Amperage Rating:15 A
Color:Black/White
Cord Diameter:0.23 to 0.72 in
Country of Origin:US
Dimensions:1.53 in Dia x 2.78 in L
Enclosure:IP20
Grade:Industrial
Horsepower:2 hp
Material:Composite
NEMA Rating:L6-15R
Number of Poles:2
Number of Wires:3
Series:HBL®
Temperature Rating:-40 to 75 deg C
Terminal Type:Pressure Screw
Voltage Rating:250 VAC
