HBL460C12W HWD

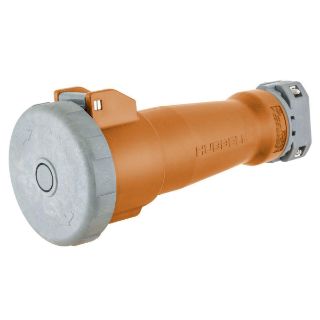

Picture of HBL460C12W HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL460C12W
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$679.56 / EA

Description

Brand Name

Wiring Device-Kellems

Type

Female Heavy Duty Insulated Non-Fusible Standard Watertight

Description

The IEC line of plugs and connectors are made with a rugged super tough, 1-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy duty, external cord grip provides superior strain relief on the conductors. Hubbell® horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognizes as an approved disconnecting/line of sight disconnecting means.
Wiring Device-Kellems Pin and Sleeve Connector, Female Heavy Duty Insulated Non-Fusible Standard Watertight, 125/250 VAC, 60 A, 3 Poles, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Orange, 5.1 in Dia x 11.15 in L

Application

High Ampacity Connection Applications

Standards

UL 498 | IEC 309-1/309-2 | CSA Certified

Features

  • 8 to 2 AWG wire size
  • Cord mounted
  • Non-NEMA rating

Specifications

Amperage Rating:60 A
Color:Orange
Country of Origin:PR
Dimensions:5.1 in Dia x 11.15 in L
Enclosure:IP67
Grade:Industrial
Material:Composite
Number of Poles:3
Number of Wires:4
Temperature Rating:-40 to 75 deg C
Terminal Type:Pressure Screw
Voltage Rating:125/250 VAC
