HBL460MI12W HWD

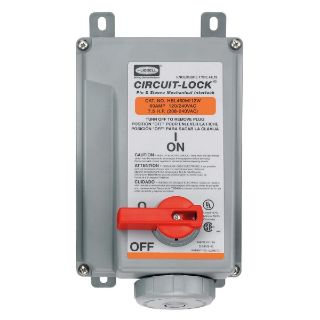

Picture of HBL460MI12W HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL460MI12W
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,183.96 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Female Grounding Heavy Duty Non-Fusible Standard

Description

Wiring Device-Kellems Circuit-Lock® Mechanical Interlock, 1-Phase Female Grounding Heavy Duty Non-Fusible Standard, 125/250 VAC, 60 A, 15000 W, 3 Poles, 4 Wires, 1-1/4 in Hub, NEMA 4X/12/IP67 Enclosure, Screw, Composite/Thermoplastic, Orange, 13.65 in H x 8.75 in W x 8.6 in D

Application

High Ampacity Watertight Connection Applications

Standards

UL 498 | CSA Certified | IEC 309-1/309-2

Features

  • 8 to 2 AWG wire size
  • 7-1/2 hp rating
  • Pressure screw terminals
  • Large gears enclosed in a gear box
  • Lockable handle to meet OSHA Lockout/Tagout regulations
  • Pre-wired IEC Pin and Sleeve receptacle

Specifications

Amperage Rating:60 A
Color:Orange
Country of Origin:PR
Dimensions:13.65 in H x 8.75 in W x 8.6 in D
Enclosure:NEMA 4X/12/IP67
Hub Size:1-1/4 in
Material:Composite/Thermoplastic
Mounting:Screw
Number of Poles:3
Number of Wires:4
Power Rating:15000 W
Voltage Rating:120/240 VAC
