HBL460P12W HWD

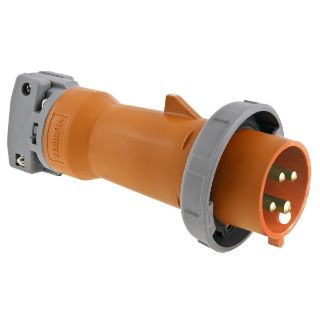

Picture of HBL460P12W HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL460P12W
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$585.83 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Grounding Heavy Duty Male Non-Fusible Standard Watertight

Description

The IEC line of plugs and connectors are made with a rugged super tough, 1-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy duty, external cord grip provides superior strain relief on the conductors. Hubbell® horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognizes as an approved disconnecting/line of sight disconnecting means.
Wiring Device-Kellems Circuit-Lock® Pin and Sleeve Plug, 1-Phase Grounding Heavy Duty Male Non-Fusible Standard Watertight, 125/250 VAC, 60 A, 7-1/2 hp, 3 Pole, 4 Wires, Industrial Grade, NEMA 4X/6/12/IP66/IP67 Enclosure, Pressure Screw Terminal, Composite, Orange, 4.49 in Dia x 10.15 in L

Application

High Ampacity Connection Applications

Standards

UL 498 | UL 94 Flammability Rating | IEC 309-1/309-2 | CSA C22.2 File No. 0.17 | RoHS Compliant

Features

  • IP67 protection rating
  • External full adjustable feet mounting
  • Valox™ handle, solid neoprene sealing gasket and gland, stainless steel cord clamp, gland clamp, terminal assembly screws reinforced thermoplastic polyester locking ring, cord and gland clamp, nickel plated brass clamp nut, high impact thermoset contact carrier, retainer, brass ground and phase pins
  • Female ground sleeve at 12 O clock (125/250 VAC)
  • 8 to 2 AWG wire size
  • All portable cord
  • Cord mounted
  • Non-NEMA rating

Specifications

Amperage Rating:60 A
Color:Orange
Country of Origin:PR
Dimensions:4.49 in Dia x 10.15 in L
Enclosure:IP67
Grade:Industrial
Horsepower:7-1/2 hp
Material:Composite
Number of Poles:3
Number of Wires:4
Temperature Rating:-40 to 75 deg C
Terminal Type:Pressure Screw
Voltage Rating:125/250 VAC
