HBL460R7W HWD

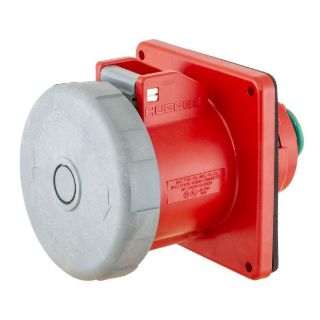

Picture of HBL460R7W HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL460R7W
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$553.02 / EA

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Female Grounding Heavy Duty Non-Fusible Single Flanged Standard Watertight

Description

Wiring Device-Kellems Pin and Sleeve Receptacle, 3-Phase Female Grounding Heavy Duty Non-Fusible Single Flanged Standard Watertight, 480 VAC, 60 A, 10 hp, 3 Poles, 4 Wires, Industrial Grade, IP67 Enclosure, Pressure Screw Terminal, Composite/Thermoplastic, Red, 4.5 in H x 5.1 in W x 4.07 in D

Application

High Ampacity Watertight Connection Applications

Standards

IEC 309-1/309-2 | UL 498

Features

  • 8 to 2 AWG wire size
  • Screw mounting
  • Non-NEMA rating

Specifications

Amperage Rating:60 A
Color:Red
Country of Origin:US
Dimensions:4.5 in H x 5.1 in W x 4.07 in D
Enclosure:IP67
Grade:Industrial
Horsepower:10 hp
Material:Composite/Thermoplastic
Number of Poles:3
Number of Wires:4
Temperature Rating:-40 to 75 deg C
Terminal Type:Pressure Screw
Voltage Rating:480 VAC
