Actual Product May Vary From Image

HBL4710 HWD

Name: HBL4710 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL4710 HWD
Price: 32.73 USD
Availability: InStock

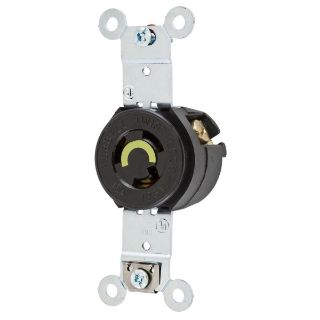

Wiring Device-Kellems Twist-Lock® HBL4710 1-Phase Heavy Duty Grounding Single Standard Locking Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Black

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: HBL4710

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	13
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$32.73

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

1-Phase Heavy Duty Grounding Single Standard

Alternate Supplier #

Grainger - 5A072

Description

Wiring Device-Kellems Twist-Lock® Locking Receptacle, 1-Phase Heavy Duty Grounding Single Standard, Series: HBL®, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA L5-15R, Industrial Grade, -40 to 75 deg C, Screw Terminal, Composite/Thermoplastic, Black, 1.531 in W x 1.266 in D

Standards

UL 498 | CSA Certified | NEMA WD1/WD5

Features

Steel terminal clamp
Styles with teeth attach to wood studs with hammer
Styles with holes attach to wood or metal studs using nails or screws and a hammer or screwdriver
Black nylon cover top
Stainless steel auto ground clip
Reinforced thermoplastic polyester base
Flush mounted
Screw mounting
14 to 12 AWG wire size

Specifications

Amperage Rating:	15 A
Color:	Black
Country of Origin:	US
Dimensions:	1.531 in W x 1.266 in D
Grade:	Industrial
Horsepower:	1/2 hp
Material:	Composite/Thermoplastic
NEMA Rating:	L5-15R
Number of Poles:	2
Number of Wires:	3
Series:	HBL®
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	125 VAC
