HBL4716C HWD

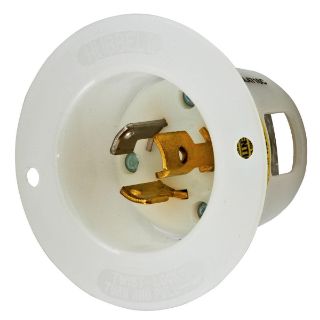

Picture of HBL4716C HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL4716C
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$26.48 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Grounding Heavy Duty Single Standard

Alternate Supplier #

Grainger - 3D170

Description

Hubbell® Insulgrip® plugs and connectors continue our long standing tradition of leadership as well as innovative design. The tough nylon body provides impact and chemical resistance commonly needed in the entertainment industry. The durable and powerful offsetting cord grip clamps on individual conductors and outer cord jackets prevent strain on the terminals. Its these and many other features that set Hubbell® performance above all others.
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Flanged Inlet, 1-Phase Grounding Heavy Duty Single Standard, Series: HBL®, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA L5-15P, Industrial Grade, NEMA 4X/12/IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Composite, White, 2.56 in Dia

Application

Heavy Duty Industrial Applications

Standards

UL 498 | CSA C22.2 No. 42 | Federal Specification WC596 | NEMA WD1/WD5

Features

  • Impact resistant thermoplastic construction
  • Back wired terminations for ease of installation
  • #14 multiple drive terminal screw (Phillips/slotted/Robertson)
  • Withstands 2000 VAC minimum dielectric voltage
  • 18 to 10 AWG wire
  • Clear polycarbonate terminal retainer
  • Brass blade, terminal clamp, terminal screw, ground screw
  • 0.062 in steel nickel plated terminal clamp
  • Steel zinc plated body holding screw
  • Natural white nylon body contact carrier, flanged casing
  • Nickel plated brass round head mounting screw
  • 0.032 in bronze ground contact
  • Screw mounting
  • 14 AWG wire size

Includes

Mounting Screws

Specifications

Amperage Rating:15 A
Color:White
Country of Origin:PR
Dimensions:2.56 in Dia
Enclosure:IP20
Grade:Industrial
Horsepower:1/2 hp
Material:Composite
NEMA Rating:L5-15P
Number of Poles:2
Number of Wires:3
Series:HBL®
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:125 VAC
