HBL4750C315IV HWD

Name: HBL4750C315IV HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL4750C315IV HWD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL4750C315IV

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Pre-Cut Removable Standard

Description

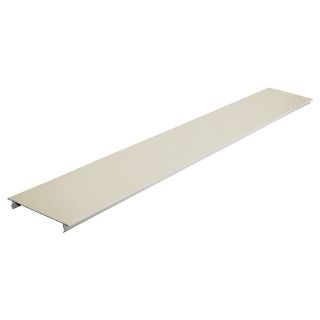

Wiring Device-Kellems Raceway Cover, Pre-Cut Removable Roll Form Standard, Series: HBL4750, 31-1/2 in Length, 4.76 in Width, 1.62 in Height, 0.53 in Thickness, For Use With: HBL4750 Series Metal Raceway, Steel, Ivory, Painted

Application

Non-Hazardous Locations, Power, Data, Voice, Audio and Video Applications

Standards

UL 5

Features

HBL4750 device bracket plate provides an excellent solution for power, data, voice, audio and video applications
Allows upto 83 Cat 5e or 59 Cat 6 cables
Device bracket plate for use with Hubbell® KP plates and Hubbell® iSTATION™ modules and bezels
1-1/4 in bend radius offers a fixed solution that does not have to be installed as an option
Provides flush finish with overlap feature to hide potential miscuts
Large cross sectional area provides for maximum cable capacity throughout entire system
Flexible channel divider provides industry leading data capacity in the same profile with a 2/3 gang Datacom split
By-pass divider opening accepts GFCI or surge devices to be mounted in 70/30 divided channel
Greater capacity offers more room for moves, adds and changes
Raceway channel can also be used with no divider for maximum cable fill in single service applications
Wide variety of overlapping cover plates provide flexibility for power, data, voice, audio and video applications
Cover plates help to conceal unsightly gaps caused by miscuts
The HBL4750 series is a 2-piece and metal raceway
A flexible channel divider provides industry leading data capacity in the same profile with a 2/3 Datacom split
7.2 sq-in nominal cross section

Specifications

Color:	Ivory
Country of Origin:	US
Finish:	Painted
Height:	1.62 in
Length:	31-1/2 in
Material:	Steel
Series:	HBL4750
Suitable For Use With:	HBL4750 Series Metal Raceway
Thickness:	0.53 in
Width:	4.76 in
