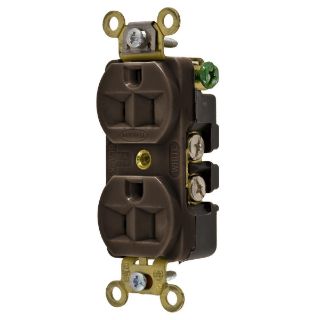

Actual Product May Vary From Image

HBL5252 HWD

Name: HBL5252 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL5252 HWD
Price: 19.14 USD
Availability: InStock

Wiring Device-Kellems HBL5252 1-Phase Compact Duplex Extra Heavy Duty Self-Grounding Screw Mount Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: HBL5252

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
12	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$19.14

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

1-Phase Compact Duplex Extra Heavy Duty Grounding Standard

Alternate Supplier #

Grainger - 5A079

Description

Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Compact Duplex Extra Heavy Duty Self-Grounding Screw Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Industrial Grade, -40 to 75 deg C, Side Wired Terminal, Thermoplastic/Composite, Brown, 3.28 x 1.33 x 1.05 in

Standards

UL 498 File No. E2186 | CSA C22.2 No. 42/285 | NEMA WD1/WD5

Features

Withstands 2000 VAC dielectric voltage
Certified for current interrupting at full rated current
Slender compact design
Brass mounting strap
Triple wipe contacts
14 to 10 AWG solid or stranded copper conductor terminal accommodation
#8-32 brass multiple drive (green) ground screw
Nylon top material
0.037 in phosphor bronze power contacts
0.05 in brass mounting strap
Stainless steel auto ground clip
Steel zinc plated mounting screw
Traditional face
Made of reinforced PET
Traditional duplex receptacle
Indoor dry unless protected by additional means

Specifications

Amperage Rating:	15 A
Color:	Brown
Country of Origin:	US
Dimensions:	3.28 in H x 1.33 in W x 0.8 in D
Grade:	Commercial/Industrial
Horsepower:	1/2 hp
Material:	Composite/Thermoplastic
NEMA Rating:	5-15R
Number of Poles:	2
Number of Wires:	3
Series:	HBL®
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Back/Side Wire
Voltage Rating:	125 VAC
