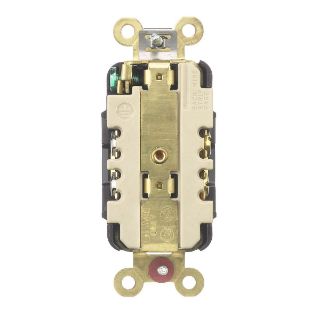

Actual Product May Vary From Image

HBL5262 HWD

Name: HBL5262 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL5262 HWD
Price: 31.01 USD
Availability: InStock

Wiring Device-Kellems HBL5262 1-Phase Duplex Extra Heavy Duty Self-Grounding Screw Mount Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: HBL5262

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
12	12	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$31.01

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

1-Phase Duplex Extra Heavy Duty Grounding Standard

Alternate Supplier #

Grainger - 6A666

Description

Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Self-Grounding Screw Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Industrial Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, Brown, 3.28 x 1.65 x 1.19 in

Standards

UL 498 File No. E2186 | CSA C22.2 No. 42/285 | NEMA WD1/WD5

Features

Withstands 2000 VAC dielectric voltage
Certified for current interrupting at full rated current
Back wired ground terminal allows faster, easier installation
1-piece brass integral ground strap
Finder groove face style
14 to 10 AWG solid or stranded copper conductor terminal accommodation
#10-32 silicon bronze (nickel plated if neutral) terminal screw
#10-32 silicon bronze (green) ground screw
Nylon top material
0.037 in brass power contact
0.05 in brass mounting strap
Stainless steel auto ground clip
Steel zinc plated mounting screw
Traditional face
Made of reinforced PET
Traditional duplex receptacle
Indoor dry unless protected by additional means

Specifications

Amperage Rating:	15 A
Color:	Brown
Country of Origin:	US
Dimensions:	3.28 in H x 1.65 in W x 1.19 in D
Grade:	Industrial
Horsepower:	1/2 hp
Material:	Composite/Thermoplastic
NEMA Rating:	5-15R
Number of Poles:	2
Number of Wires:	3
Series:	HBL®
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Back/Side Wire
Voltage Rating:	125 VAC
