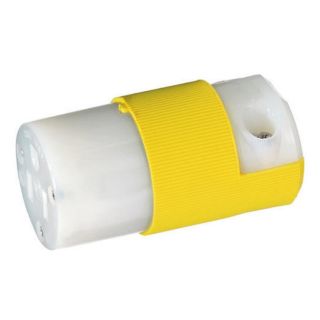

Picture of HBL52CM69C HWD
Actual Product May Vary From Image

HBL52CM69C HWD

Wiring Device-Kellems Insulgrip® HBL52CM69C Corrosion-Resistant Female Grounding Insulated Standard Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Manufacturer: Hubbell Wiring Device-Kellems
Manufacturer part number: HBL52CM69C
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$39.13

Product Details

Brand Name

Wiring Device-Kellems

Type

Corrosion-Resistant Female Grounding Insulated Standard

Alternate Supplier #

Grainger - 3D198

Description

Wiring Device-Kellems Insulgrip® Straight Blade Connector, Corrosion-Resistant Female Grounding Insulated Standard, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15R, Commercial/Industrial/Marine Grade, IP20 Enclosure, 0.25 to 0.655 in Cord Dia, -40 to 75 deg C, Screw Terminal, Composite, Yellow, 2.78 in L x 1.52 in W x 2.78 in H

Standards

RoHS Compliant | CSA C22.2 42 | 280 | NEMA WD6, WD5 | UL 498 File No. E1706 | UL 94 HB Flammability Rating

Features

  • Individual wiring terminals completely enclosed
  • Powerful, offsetting cord grips clamp on individual conductors
  • Roomy wiring chamber provides ample space for wiring
  • Clear polycarbonate retainer
  • Natural nylon cord clamp and contact holder
  • #8-32 brass, multiple drive terminal screw
  • #8-32 brass, multiple drive (green) ground screw
  • 0.04 in copper alloy power contacts
  • Withstands 2000 VAC minimum dielectric voltage
  • Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current at a power factor of 75%
  • Terminals identified in accordance with UL 498 (brass, white, green)
  • 18 to 10 AWG copper stranded or solid conductor only terminal accommodation
  • Ratings are a permanent part of the device
  • Corrosion resistant
  • 14 to 12 AWG conductor range
  • Indoor dry unless protected by additional means
  • Cord mounting

Specifications

Amperage Rating:15 A
Color:Yellow
Cord Diameter:0.23 to 0.72 in
Country of Origin:US
Dimensions:2.78 in L x 1.52 in W x 2.78 in H
Enclosure:IP20
Grade:Commercial/Industrial
Horsepower:1/2 hp
Material:Composite
NEMA Rating:5-15R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:125 VAC
