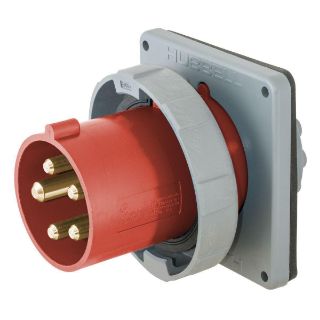

HBL530B6W HWD

Name: HBL530B6W HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL530B6W HWD
Price: 470.23 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL530B6W

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$470.23 / EA

Description

Brand Name

Wiring Device-Kellems

Type

Grounding Multi-Phase

Description

Wiring Device-Kellems Pin and Sleeve Inlet, Grounding Multi-Phase, 220 to 415 VAC, 30/32 A, 4 Pole, 5 Wires, NEMA 3R/3RX/4X/12 NEMA Rating, IP68/IP69K Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Red, 4.02 in L x 4.02 in W Dimensions

Application

For high ampacity watertight connections

Standards

IEC Certified | UL V-0 Flammability Rating

Features

Impact and corrosion-resistant insulated non-metallic housing
Solid 1-piece pins for reliable electrical contact
Gasketed sealing ring provides watertight seal
Sequential contact engagement to prevent a momentary over voltage
Without pilot pin
Rugged one-piece housing
Thermoset polyester contact carrier

Specifications

Amperage Rating:	30/32 A
Color:	Red
Country of Origin:	US
Dimensions:	4.02 in L x 4.02 in W
Enclosure:	IP68/IP69K
Material:	Composite
NEMA Rating:	NEMA 3R/3RX/4X/12
Number of Poles:	4
Number of Wires:	5
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Pressure Screw
Voltage Rating:	220 to 415 VAC
