HBL530C7W HWD

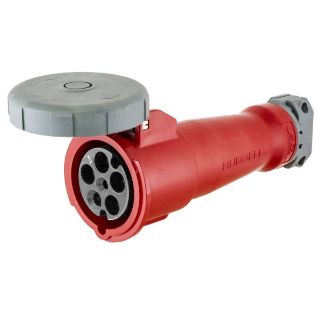

Picture of HBL530C7W HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL530C7W
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$465.54 / EA

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase 5-Wire Female Grounding Heavy Duty Insulated Non-NEMA Standard Watertight Cord Mount

Description

Wiring Device-Kellems Pin and Sleeve Connector, 3-Phase 5-Wire Female Grounding Heavy Duty Insulated Non-NEMA Standard Watertight Cord Mount, 277/480Y VAC, 30 A, 4 Pole, 5 Wires, Industrial Grade, -40 to 75 deg C, Pressure Screw Terminal, Composite, Red, 9.68 in L x 4.7 in W

Application

High Ampacity Connection Applications

Standards

RoHS Compliant | UL 498 File No. E146033 | CSA File No. LR280C | IEC 309-1/309-2/60309-1/60309-2

Features

  • High impact thermoset contact carrier and retainer
  • 300 series stainless steel terminal screws, 300 series stainless steel terminal screws assembly screws, stainless steel (17-1 type) arm spring
  • Neoprene gasket
  • Nickel plated brass cover screw/rivet
  • Polycarbonate rotating sealing disc and brass ground/phase sleeve
  • Identification and ratings are a part of the external label and molded into the receptacle mount product identification
  • 0.6 to 1.45 in cord clamp range
  • Nickel plated brass clamp nut
  • Stainless steel (300 series) cord clamp screws
  • Self-closing gasketed cover
  • Supertough® insulated non-metallic housing
  • Watertight neoprene glad seal to prevent water ingress from entering at cable entrance
  • Sequential contact engagement to prevent a momentary over voltage on components
  • Multi-contact spring provides and maintains high unit pressure on mating pins to minimize temperature rise

Specifications

Amperage Rating:30 A
Color:Red
Country of Origin:PR
Dimensions:4.7 in Dia x 9.68 in L
Enclosure:IP67
Grade:Industrial
Horsepower:7-1/2 hp
Material:Composite
Number of Poles:4
Number of Wires:5
Temperature Rating:-40 to 75 deg C
Terminal Type:Pressure Screw
Voltage Rating:277/480Y VAC
