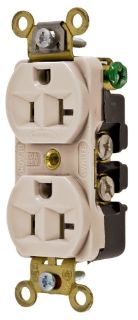

HBL5352AL HWD

Name: HBL5352AL HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL5352AL HWD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL5352AL

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Duplex Grounding Heavy Duty Standard Traditional

Description

Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Duplex Grounding Heavy Duty Standard Traditional, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial Grade, -40 to 75 deg C, Screw Terminal, Composite/Thermoplastic, Almond, 0.8 in L x 1.33 in W x 3.28 in H Dimensions

Application

Indoor Dry Environments

Standards

Features

#8-32 brass/nickel plated for neutral terminal screw
#8- 32 brass multiple drive (green) ground screw
Nylon top/reinforced PET base
0.037 in phosphor bronze power contact
0.05 in brass mounting strap
Stainless steel autoground clip
Steel, zinc plated mounting screw
Withstands 2000 VAC minimum dielectric voltage
Certified for current interrupting at full rated current
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Terminals identified in accordance with UL 498
14 to 10 AWG copper stranded or solid conductor only terminal accommodation
Ratings are a permanent part of the device
Screw mounted

Specifications

Amperage Rating:	20 A
Color:	Almond
Country of Origin:	US
Dimensions:	0.8 in L x 1.33 in W x 3.28 in H
Grade:	Industrial
Horsepower:	1 hp
Material:	Composite/Thermoplastic
NEMA Rating:	NEMA 5-20R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	125 VAC
