HBL5361 HWD

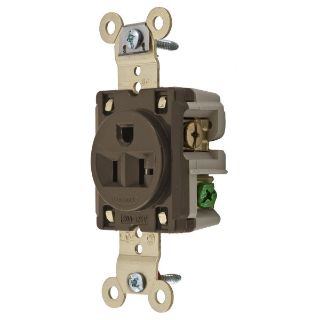

Picture of HBL5361 HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL5361
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$33.90 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Duplex Extra Heavy Duty Grounding Standard Single

Alternate Supplier #

Grainger - 1X988

Description

Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Single Extra Heavy Duty Self-Grounding Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Industrial Grade, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Thermoplastic/Composite, Brown, 3.28 x 1.63 x 1.19 in

Standards

UL 498 File No. E2186 | CSA C22.2 No. 42/285 | NEMA WD1/WD5

Features

  • Withstands 2000 VAC minimum dielectric voltage
  • Certified for current interrupting at full rated current
  • 1-piece brass integral ground strap
  • Unique bypass contact design
  • 14 to 12 AWG wire size

Specifications

Amperage Rating:20 A
Color:Brown
Country of Origin:US
Dimensions:2.38 in H x 1.63 in W x 1.19 in D
Grade:Industrial
Horsepower:1 hp
Material:Composite/Thermoplastic
NEMA Rating:5-20R
Number of Poles:2
Number of Wires:3
Series:HBL®
Temperature Rating:-40 to 75 deg C
Terminal Type:Back and Side Wire/Screw
Voltage Rating:125 VAC
