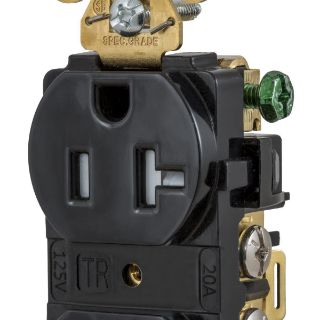

Actual Product May Vary From Image

HBL5362 HWD

Name: HBL5362 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL5362 HWD
Price: 36.48 USD
Availability: InStock

Wiring Device-Kellems HBL5362 1-Phase Duplex Extra Heavy Duty Self-Grounding Screw Mount Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: HBL5362

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
4	3	2
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$36.48

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

1-Phase Duplex Extra Heavy Duty Grounding Standard

Alternate Supplier #

Grainger - 6A668

Description

Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Self-Grounding Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Industrial Grade, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Thermoplastic/Composite, Brown, 3.28 x 1.65 x 1.19 in

Application

Dry Indoor

Standards

UL 498 File No. E2186 | CSA C22.2 No. 42/285 | NEMA WD1/WD5

Features

Traditional face shape
Withstands 2000 VAC dielectric voltage
14 to 10 AWG solid or stranded copper conductor terminal accommodation
Finder groove face style
Back wired ground terminal allows faster, easier installation
1 piece brass integral ground strap
PBT base, 0.036 in by pass brass power contacts
0.031 in brass ground contact
Nickel plated steel clamping plate
Certified for current interrupting at full rated current
Plated brass terminal screws
0.05 in brass mounting strap
Zinc plated steel mounting screws
Deep body design with circuit ID face
Traditional duplex receptacle
Indoor dry unless protected by additional means

Specifications

Amperage Rating:	20 A
Color:	Brown
Country of Origin:	US
Dimensions:	3.28 in H x 1.65 in W x 1.19 in D
Grade:	Industrial
Horsepower:	1 hp
Material:	Composite/Thermoplastic
NEMA Rating:	5-20R
Number of Poles:	2
Number of Wires:	3
Series:	HBL®
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Back and Side Wire/Screw
Voltage Rating:	125 VAC
