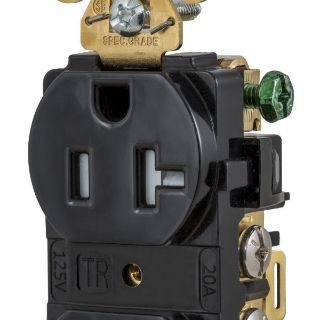

HBL5362BK HWD

Name: HBL5362BK HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL5362BK HWD
Price: 37.26 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL5362BK

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$37.26 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Duplex Extra Heavy Duty Self-Grounding Standard

Alternate Supplier #

Grainger - 2LBW2

Description

Hubbell® extra heavy duty industrial series receptacles demonstrate a commitment to building quality devices and continually reinforce a philosophy of unrivaled performance. The deep nylon body design delivers increased impact resistance and the exclusive bypass contact design results in greater contact force and reduced heat build up.

Wiring Device-Kellems HBL® Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Self-Grounding Standard, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial Grade, -40 to 75 deg C, Back/Side Wire Terminal, Composite/Thermoplastic, Black, 3.28 in H x 1.65 in W x 1.19 in D Dimensions

Application

Indoor Dry Environment

Standards

CSA 22.2 No. 42 285 | Federal Specification W-C-596 | Meets NEMA WD-6 Requirements | UL 498/E2186 | RoHS Compliant

Features

Finder groove face style
1-piece brass integral ground strap
Deep body design with circuit ID face
Back wired ground terminal allows faster, easier installation

Specifications

Amperage Rating:	20 A
Color:	Black
Country of Origin:	US
Dimensions:	3.28 in H x 1.65 in W x 1.19 in D
Grade:	Industrial
Horsepower:	1 hp
Material:	Composite/Thermoplastic
NEMA Rating:	5-20R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Back and Side Wire/Screw
Voltage Rating:	125 VAC
