HBL5362I HWD

Name: HBL5362I HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL5362I HWD
Price: 34.10 USD
Availability: OutOfStock

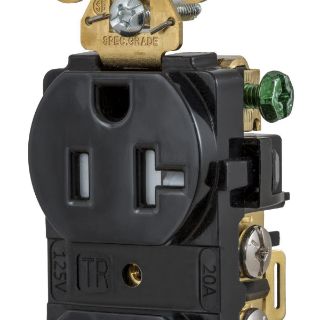

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL5362I

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 6 days

Estimated dates are contingent upon manufacturer stock.

$34.10 / EA

This product has a minimum quantity of 10

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Duplex Grounding Heavy Duty Standard Screw Mount

Alternate Supplier #

Grainger - 6A669

Description

Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Duplex Grounding Heavy Duty Standard Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Industrial Grade, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Thermoplastic/Composite, Ivory, 3.28 x 1.65 x 1.19 in

Application

Dry Location and Indoor Applications

Standards

UL 498 File No. E2186 | CSA C22.2 No. 42/285 | NEMA WD1/WD5

Features

Withstands 2000 VAC minimum dielectric voltage
Certified for current interrupting at full rated current
Back wired ground terminal allows faster, easier installation
1-piece brass integral ground strap
#10-32 silicon bronze (nickel plate if neutral) terminal screw
#10-32 silicon bronze (green finish) ground screw
Nylon top material
0.037 in brass contact
0.05 in brass mounting strap
Stainless steel auto ground clip
Steel zinc plated mounting screw
Made of reinforced PET
14 to 12 AWG wire size

Specifications

Amperage Rating:	20 A
Color:	Ivory
Country of Origin:	US
Dimensions:	3.28 in H x 1.63 in W x 0.97 in D
Grade:	Industrial
Horsepower:	1 hp
Material:	Composite
NEMA Rating:	5-20R
Number of Poles:	2
Number of Wires:	3
Series:	HBL®
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Back and Side Wire/Screw
Voltage Rating:	125 VAC
