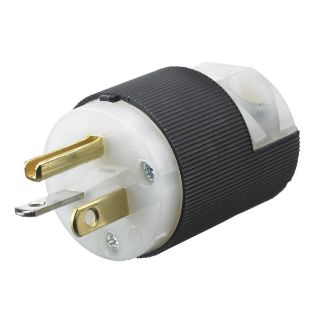

Picture of HBL5366C HWD
Actual Product May Vary From Image

HBL5366C HWD

Wiring Device-Kellems Insulgrip® HBL5366C 1-Phase Grounding Heavy Duty Male Standard Straight Blade Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Black/White
Manufacturer: Hubbell Wiring Device-Kellems
Manufacturer part number: HBL5366C
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
11 0 6
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$29.45

Product Details

Brand Name

Wiring Device-Kellems

Type

1-Phase Grounding Heavy Duty Male Standard

Alternate Supplier #

Grainger - 4A255

Description

Wiring Device-Kellems Insulgrip® Straight Blade Plug, 1-Phase Grounding Heavy Duty Male Standard, 125 VAC, 20 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-20P, Commercial/Industrial Grade, IP20 Enclosure, 0.23 to 0.72 in Cord Dia, -40 to 75 deg C, Screw Terminal, Composite/Nylon, Black/White, 1.97 in L x 1.53 in W

Application

Dry Location and Indoor Applications

Standards

UL 498 File No. E1706 | CSA C22.2 No. 42/280 | UL94 HB Flammability Rating | NEMA WD1/WD5

Features

  • All portable cord
  • Cord mounted
  • Withstands 2000 VAC minimum dielectric voltage
  • Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
  • Terminals identified in accordance with UL 498 (brass, white, green) terminal identification
  • 12 to 10 AWG copper stranded wire size
  • 0.06 in brass contact blades, 0.04 in copper alloy
  • #8-32 brass/nickel plated for neutral terminal screw, #8-32 brass, multiple drive (green) ground screw
  • Ribbed nylon housing is impact and chemical resistant
  • Fast lead assembly screws
  • Beveled housing prevents snagging
  • Black nylon housing, clear polycarbonate retainer, natural nylon blade holder and cord clamp

Specifications

Amperage Rating:20 A
Color:Black/White
Cord Diameter:0.23 to 0.72 in
Country of Origin:US
Dimensions:1.52 x 1.52 x 1.96 in
Enclosure:IP20
Grade:Commercial/Industrial
Horsepower:1 hp
Material:Composite/Nylon
NEMA Rating:5-20P
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:125 VAC
