HBL5366CA HWD

Product Details

Manufacturer part number:
HBL5366CA
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Grounding Portable Standard Cord Mount

Alternate Supplier #

Grainger - 5Z866

Description

For more than 100 years, the Hubbell® name has been synonymous with innovation. As a pioneer in the development of new technologies, Hubbell® wiring device has always strived to improve performance safety and functionality across our entire product line many Hubbell® innovations have become the industry standard for protecting people, increasing value and extending product life cycle for maximum sustainability. Insulgrip® is yet another example of a Hubbell® innovation that has become the industry standard. Insulgrip® products are synonymous with Hubbell® ongoing commitment to discovering ways to make products safer and last longer. By encasing wiring devices in tough nylon housings, Insulgrip® devices ensure high impact, heat and chemical resistance while insulating current carrying components from the user for maximum safety. Insulgrip® cord gripping design clamps conductors, not just the cable jacket, making it the industry's most powerful cord grip with superior strain relief. Each Insulgrip® device is manufactured with roomy, separate wiring chambers to insulate conductors and an individually molded face to keep OUT dust and debris that can cause contamination over time.

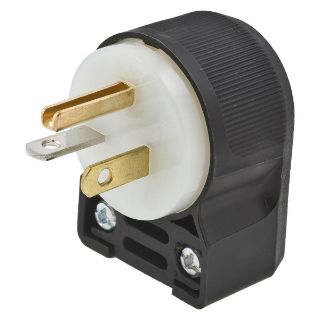

Wiring Device-Kellems, HBL5366CA, Straight Blade Plug, 1-Phase Grounding Portable Standard Cord Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.325 to 0.655 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Polycarbonate, Black/White, 1.21 x 1.52 x 2.08 in Dimensions

Application

Industrial, Food Processing, Waste Management, Healthcare, Data Centers, Constructions, Dry Location and Indoor Applications

Standards

UL 498 File No. E1706 | Federal Specification W-C596G | CSA C22.2 File No. 42/280 | NEMA WD1/WD5/WD6 | RoHS Compliant

Specifications

Amperage Rating:20 A
Color:Black/White
Cord Diameter:0.325 to 0.655 in
Country of Origin:PR
Dimensions:1.21 x 1.52 x 2.08 in
Enclosure:IP20
Grade:Commercial/Industrial
Horsepower:1 hp
Material:Polycarbonate
NEMA Rating:5-20P
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:125 VAC
