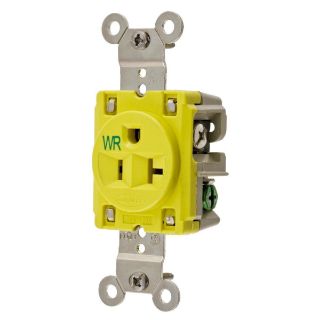

HBL53CM61 HWD

Name: HBL53CM61 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL53CM61 HWD
Price: 40.15 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL53CM61

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$40.15 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Corrosion Resistant Extra Heavy Duty Isolated Ground Single Standard Screw Mount

Alternate Supplier #

Grainger - 3D904

Description

Wiring Device-Kellems HBL® Straight Blade Receptacle, 1-Phase Extra Heavy Duty Isolated Ground Single Standard, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Marine Grade, -40 to 75 deg C, Back/Side Wire Terminal, Composite/Thermoplastic, Yellow, 3.28 in H x 1.63 in W x 1.19 in D Dimensions

Application

Indoor Dry Environment

Standards

NEMA WD1/WD5 | UL 498 | CSA Certified | Federal Specification W-C-596 | UL94 V-2 Flammability Rating

Features

1-piece nickel plated brass integral ground strap
Unique bypass contact design
Finder groove face style
Corrosion resistant

Specifications

Amperage Rating:	20 A
Color:	Yellow
Country of Origin:	PR
Dimensions:	3.28 in H x 1.63 in W x 1.19 in D
Grade:	Marine
Horsepower:	1 hp
Material:	Composite/Thermoplastic
NEMA Rating:	5-20R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Back and Side Wire/Screw
Voltage Rating:	125 VAC
