HBL560B9W HWD

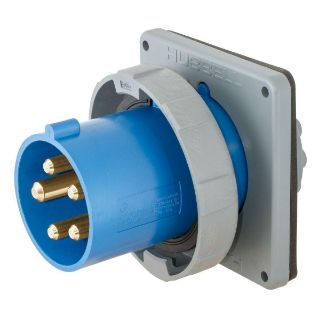

Picture of HBL560B9W HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL560B9W
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$620.20 / EA

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Flanged Male Single Standard Watertight Screw Mount

Alternate Supplier #

Grainger - 3D214

Description

Hubbell® IEC 60309 pin and sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL® series of IEC pin and sleeve were designed for the demanding North American market. Hubbell® was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous of innovative features noted below.
Wiring Device-Kellems, HBL560B9W, Pin and Sleeve Inlet, 3-Phase Flanged Male Single Standard Watertight Screw Mount, 120/208 VAC, 60 A, 3 hp, 4 Pole, 5 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Thermoplastic, Blue, 4-1/2 in W x 4-1/2 in H Dimensions

Application

High Ampacity Watertight Connection Applications

Standards

RoHS Compliant | CSA File No. LR280C | IEC 309-1/309-2 | UL 498 | CSA Certified

Specifications

Amperage Rating:60 A
Color:Blue
Country of Origin:PR
Dimensions:4-1/2 in W x 4-1/2 in H
Enclosure:IP67
Grade:Industrial
Horsepower:3 hp
Material:Thermoplastic
Number of Poles:4
Number of Wires:5
Temperature Rating:-40 to 75 deg C
Terminal Type:Pressure Screw
Voltage Rating:120/208 VAC
