HBL560C7W HWD

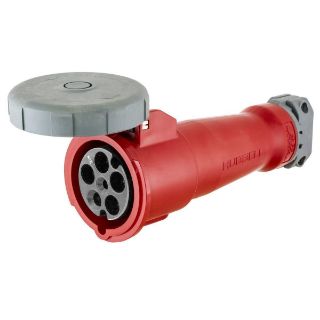

Picture of HBL560C7W HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL560C7W
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$695.18 / EA

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Female Heavy Duty Insulated Standard Watertight

Description

Every Hubbell® non-metallic pin and sleeve product is designed to meet the international standard IEC 60309-1 and IEC 60309-2. This device standard calls out singly rated, non-interchangeable configuration for every voltage and type of service.
Wiring Device-Kellems Pin and Sleeve Connector, 3-Phase Female Grounding Heavy Duty Insulated Standard Watertight, 277/480Y VAC, 60 A, 10 hp, 4 Poles, 5 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite/Nylon, Red, 5.1 in Dia x 11.15 in L

Application

High Ampacity Connection Applications

Standards

RoHS Compliant | UL 498 File No. E146033 | CSA File No. LR280C | IEC 309-1/309-2/60309-1/60309-2

Features

  • High impact thermoset contact carrier and retainer
  • 300 series stainless steel terminal screws, 300 series stainless steel terminal screws assembly screws, stainless steel (17-1 type) arm spring
  • Neoprene gasket
  • Nickel plated brass cover screw/rivet
  • Polycarbonate rotating sealing disc and brass ground/phase sleeve
  • Identification and ratings are a part of the external label and molded into the receptacle mount product identification
  • 1/2 to 1.45 in cord clamp range
  • Nickel plated brass clamp nut
  • Stainless steel (300 series) cord clamp screws
  • Self-closing gasketed cover
  • Supertough® insulated non-metallic housing
  • Watertight neoprene glad seal to prevent water ingress from entering at cable entrance
  • Sequential contact engagement to prevent a momentary over voltage on components
  • Multi-contact spring provides and maintains high unit pressure on mating pins to minimize temperature rise

Specifications

Amperage Rating:60 A
Color:Red
Country of Origin:PR
Dimensions:11.15 in L x 5.1 in W
Enclosure:IP67
Grade:Industrial
Horsepower:10 hp
Material:Composite
Number of Poles:4
Number of Wires:5
Temperature Rating:-40 to 75 deg C
Terminal Type:Pressure Screw
Voltage Rating:277/480 VAC
