HBL563R6W HWD

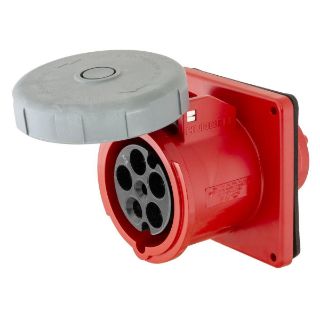

Picture of HBL563R6W HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL563R6W
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Single Flanged

Description

The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy duty, external cord grip provides superior strain relief on the conductors. Hubbell® horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognizes as an approved disconnecting/line of sight disconnecting means.
Wiring Device-Kellems HBL® Pin and Sleeve Receptacle, Grounding Single Flanged Standard, 220/380 to 240/415 VAC, 63 A, 4 Poles, 5 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Screw Terminal, Composite/Thermoplastic, Red, 4-1/2 in L x 4-1/2 in W Dimensions

Application

High Ampacity Watertight Connection Applications

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | CSA C22.2 File No. 182.1 | IEC 309-1 | 309-2 | UL 498 | 1682 File No. E146032

Features

  • 300 series stainless steel hinge spring, mounting screws, terminal screws and assembly screws
  • High impact thermoset contact carrier and retainer
  • Neoprene gasket
  • 17-1 type stainless steel arm spring
  • Nickel plated brass cover screw/rivet
  • Polycarbonate rotating sealing disc
  • Brass ground/phase sleeve
  • Beryllium copper multi-contact insert with silver plating
  • Withstands 3000 VAC minimum dielectric voltage
  • 600 VAC RMS maximum working voltage
  • Certified for current interrupting at full rated current
  • Suitable for use on a circuit capable of delivering not more than 10000 RMS symmetrical amperes at the voltage rating of the receptacle short circuit withstand
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • 10000 cycles mechanical, 6000 cycles electrical endurance
  • In accordance with UL746C impact resistance
  • Terminals identified in accordance with North American and international conventions
  • Identification and ratings are a part of the external label and molded into the receptacle mount product identification
  • Corrosion resistant self-closing gasketed cover
  • Sequential contact engagement to prevent a momentary over voltage on components
  • Super tough insulated non-metallic house for impact and chemical resistance

Specifications

Amperage Rating:63 A
Color:Red
Country of Origin:US
Dimensions:4-1/2 in L x 4-1/2 in W
Enclosure:IP67
Grade:Industrial
Material:Composite/Thermoplastic
Number of Poles:4
Number of Wires:5
Temperature Rating:-40 to 75 deg C
Terminal Type:Pressure Screw
Voltage Rating:220/380 to 240/415 VAC
