HBL5662 HWD

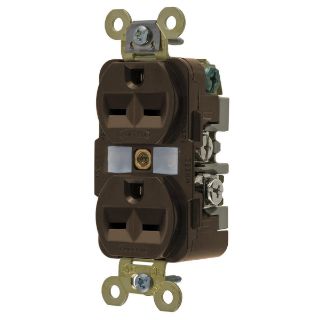

Wiring Device-Kellems HBL5662 1-Phase Duplex Extra Heavy Duty Grounding Screw Mount Straight Blade Receptacle, 250 VAC, 15 A, 2 Poles, 3 Wires, Brown
Manufacturer part number: HBL5662
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$37.73

Product Details

Brand Name

Wiring Device-Kellems

Type

1-Phase Duplex Extra Heavy Duty Grounding Screw Mount

Alternate Supplier #

Grainger - 1X994

Description

Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Grounding Screw Mount, 250 VAC, 15 A, 1.5 hp, 2 Pole, 3 Wires, 6-15R NEMA Rating, Industrial Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, Brown, 3.28 x 1.65 x 1.19 in

Standards

UL 498 File No. E2186 | CSA C22.2 No. 42/285 | NEMA WD1/WD5

Features

  • Withstands 2000 VAC dielectric voltage
  • Certified for current interrupting at full rated current
  • 1-piece brass integral ground strap
  • Deep nylon body design delivers increased impact resistance
  • Finder groove face style
  • 14 to 10 AWG solid or stranded copper conductor terminal accommodation
  • #8-32 brass/nickel plated for neutral terminal screw
  • #8-32 brass multiple drive (green) ground screw
  • Nylon top material
  • 0.037 in brass power contact
  • 0.05 in brass mounting strap
  • Stainless steel auto ground clip
  • Steel zinc plated mounting screw
  • Traditional face
  • Made of reinforced PET
  • Traditional duplex receptacle
  • Indoor dry unless protected by additional means

Specifications

Amperage Rating:15 A
Color:Brown
Country of Origin:US
Dimensions:3.28 in H x 1.65 in W x 1.19 in D
Grade:Industrial
Horsepower:1-1/2 hp
Material:Composite/Thermoplastic
NEMA Rating:6-15R
Number of Poles:2
Number of Wires:3
Series:HBL®
Temperature Rating:-40 to 75 deg C
Terminal Type:Back/Side Wire
Voltage Rating:250 VAC
