HBL5965VBLK HWD

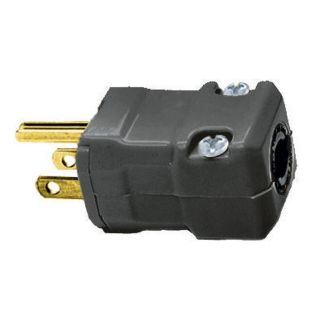

Picture of HBL5965VBLK HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL5965VBLK
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$14.61 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Grounding Male Portable Standard Cord Mount

Alternate Supplier #

Grainger - 3D224

Description

Hubbell® straight blade Valise® plugs and connector bodies are ideal for OEMs because their superior performance will help your own products perform better. Valise® devices are designed to be easy to wire and quick to assemble. Yet, they provide superior cord gripping, impact- and crush resistance and a totally insulated body for added safety.
Wiring Device-Kellems Valise® Straight Blade Plug, 1-Phase Grounding Male Portable Standard Cord Mount, 125 VAC, 15 A, 2 hp, 2 Pole, 3 Wires, 5-15P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.22 to 0.66 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Polycarbonate, Black, 1.87 x 1.12 x 1.87 in

Application

Dry Location and Indoor Applications

Standards

UL 498 File No. E1706 | CSA C22.2 No. 42/280 | UL94 V-2 Flammability Rating | NEMA WD1/WD5 WD6

Features

  • All portable cord
  • Cord mounted
  • Hinged 1-piece body design for easy assembly
  • Powerful, offsetting cord grips clamp on individual conductors
  • Assembly screws are captive and will not fall out while wiring
  • Noryl (polyphenylene oxide) cord clamp
  • 0.06 in brass contact blades
  • 0.04 in brass ground contact blade
  • Steel (copper finish) terminal screws
  • Steel (green finish) ground screw
  • Withstands 2000 VAC minimum dielectric voltage
  • Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
  • Terminals identified in accordance with UL 498 (brass, white, green) terminal identification
  • 16 to 10 AWG copper stranded or solid wire size
  • Ratings are a permanent part of the device product identification

Specifications

Amperage Rating:15 A
Color:Black
Cord Diameter:0.22 to 0.66 in
Country of Origin:PR
Dimensions:1-7/8 in L x 1-1/4 in W x 1-1/8 in H
Enclosure:IP20
Grade:Commercial/Industrial
Horsepower:1/2 hp
Material:Composite/Nylon
NEMA Rating:5-15P
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:125 VAC
