HBL60W48D HWD

Name: HBL60W48D HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL60W48D HWD
Price: 156.00 USD
Availability: OutOfStock

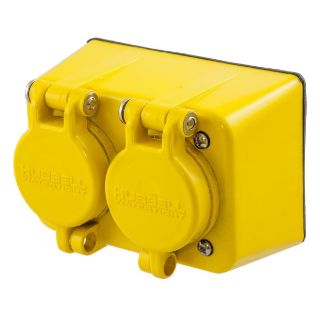

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL60W48D

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$156.00 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Duplex Grounding Standard Watertight Screw Mount

Description

Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Duplex Grounding Standard Watertight Screw Mount, 250 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, 6-20R NEMA Rating, Commercial/Industrial Grade, NEMA 4/4X/6/6P/12 Enclosure, -40 to 60 deg C, Screw Terminal, Composite, Yellow

Standards

RoHS Compliant | ANSI Specified | CSA C22.2 No. 42 | NEMA WD1/WD6 | UL 498

Features

Impact resistant PBT lid, cover plate and receptacle body
Thermoplastic elastomer seal
Stainless steel hardware and corrosion resistant connection points

Specifications

Amperage Rating:	20 A
Color:	Yellow
Country of Origin:	CN
Dimensions:	3.1 in H x 4.56 in W x 2.71 in D
Enclosure:	NEMA 4/4X/6/6P/12
Grade:	Commercial/Industrial
Horsepower:	2 hp
Material:	Composite
NEMA Rating:	6-20R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Screw
Voltage Rating:	250 VAC
