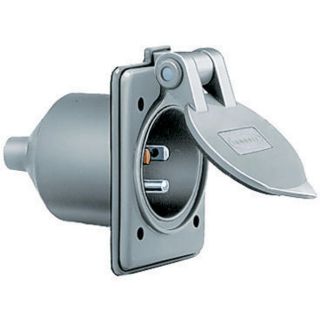

HBL61CM64 HWD

Name: HBL61CM64 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: HBL61CM64 HWD
Price: 71.24 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

HBL61CM64

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$71.24 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Grounding Male Standard Single Weatherproof

Alternate Supplier #

Grainger - 3D235

Description

Wiring Device-Kellems Straight Blade Flanged Inlet, 1-Phase Grounding Male Standard Single Weatherproof, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15P, Marine Grade, -40 to 75 deg C, Screw Terminal, Composite, Yellow, 2.88 in L x 2.72 in W x 2.68 in H Dimensions

Application

Marine Applications

Standards

UL 498 File No. E2186 | CSA C22.2 No. 42 | UL94 V-2 Flammability Rating | NEMA WD1/WD5 WD6

Features

Brass power contacts
#8-32 brass, multiple drive terminal screw
Withstands 2000 VAC minimum dielectric voltage
Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Terminals identified in accordance with UL 498 (brass, white, green) terminal identification
14 to 12 AWG copper stranded or solid wire size
Nylon base, 0.04 in brass power contacts, stainless steel mounting screw 0.19 in Dia hole
Corrosion resistant

Specifications

Amperage Rating:	15 A
Color:	Yellow
Country of Origin:	PR
Dimensions:	1.47 x 1.32 x 1.47 in
Grade:	Marine
Horsepower:	1/2 hp
Material:	Composite
NEMA Rating:	5-15P
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	125 VAC
