HBL7410BG HWD

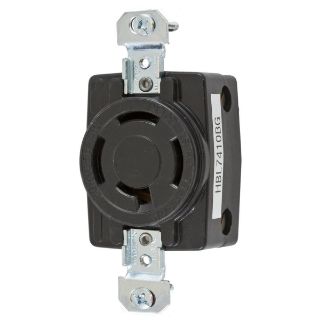

Picture of HBL7410BG HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
HBL7410BG
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$74.29 / EA

Description

Brand Name

Wiring Device-Kellems

Type

3-Phase Flush Mount Heavy Duty Non-Grounding Standard Single Screw Mount

Alternate Supplier #

Grainger - 3D246

Description

Wiring Device-Kellems Twist-Lock® Locking Receptacle, 3-Phase Flush Heavy Duty Non-Grounding Single Standard, 250 Delta VAC, 20 A, 3 Poles, 3 Wires, Industrial Grade, -40 to 75 deg C, Screw Terminal, Composite, Black, 3.61 in H x 1.71 in W x 1.28 in D

Application

Dry Locations and Indoor Applications

Standards

RoHS Compliant | UL 498 | CSA C22.2 No. 42/0.17 | UL94 Flammability Rating | Federal Specification W-C-596

Features

  • #8-32 bronze (white finish on neutral screw when used) terminal screw
  • #8-32 bronze (green) ground screw
  • Steel zinc plated mounting screw
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • Terminals identified in accordance with UL 498 (X, Y, Z, white, green) terminal identification
  • 0.04 in brass ground contact
  • 0.05 in brass bridge mounting strap
  • Withstands 2000 VAC minimum dielectric voltage
  • 0.04 in brass backplate
  • Stainless steel auto ground clip
  • Nylon polyester base
  • Black nylon cover (top)
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • Face color coding by voltage facilitates locating and mating of proper devices
  • All brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • 12 to 10 AWG wire
  • Non-NEMA rating
  • High-impact, abuse-resistant nylon face

Specifications

Amperage Rating:20 A
Color:Black
Country of Origin:PR
Dimensions:3.61 in H x 1.71 in W x 1.28 in D
Enclosure:IP20
Grade:Industrial
Material:Composite
Number of Poles:3
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:250 VAC
